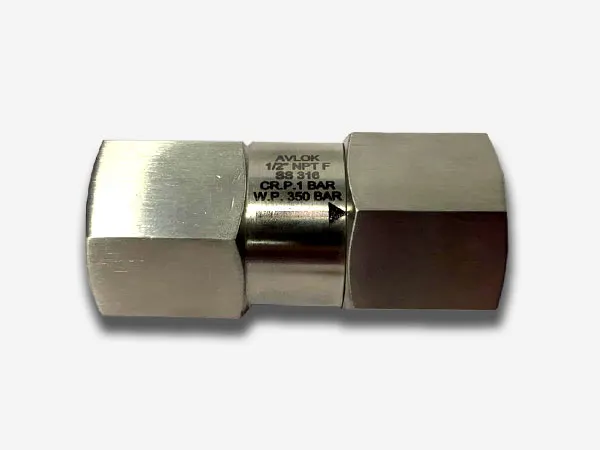

Check Valve Manufacturers

Avlok is a leading check valve manufacturers and suppliers. There will be no compromise in terms of quality because our check valve sellers only sell certified valves for better customer satisfaction. The Check valves are activated by the line fluid pressure and closed by gravity. The back pressure of lime fluid also facilitates sealing. We manufacture & export a whole line of Check valves including Brass, Stainless Steel, Relief & Non-return Valves that cater to varied industrial requirements hold the following.

Specification

BRAND NAME: AVLOK

SIZE: 1/8″ TO 2″ / 6 MM TO 50 MM

CONNECTION: THREADED, TUBE END, SOCKET WELD END, FLANGE END

THREADS: NPT, BSPP, BSPT, METRIC, JIC, UNF

FLOW PATTERN: STRAIGHT

BODY SHAPE: HEXAGON

PRESSURE RATING: 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI

CRACKING PRESSURE: 0.5 BAR

TEMPERATURE: (-50* C TO 350*C ) RANGE AS PER PRESSURE

BODY TYPE: BAR STOCK, FORGED

PACKING DETAILS: BOX PACKING, WOODEN PALLET

MATERIAL: SS 304, SS 316, SS 316 TI, BRASS, COPPER, CS, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, SMO 254, ALLOY 20, TITANIUM, 904L & ALL OTHER ALLOYS

Types of Instrumentation Valves

Needle Valves

Ball Valves

What is the purpose of a check valve?

Check valves are mounted generally in pipelines to avoid back flow. A check valve essentially is a one way valve, wherein flow is allowed in one direction, but if the flow reverses, the valve automatically closes and safeguards the piping, other valves, pumps etc.

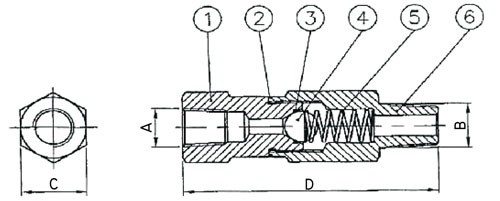

Check Valve Material of Construction

Body	SS316/Brass
O-Ring	Viton
Gasket	SS316
Poppet	SS316
Spring	SS316

Threaded Check Valve Dimension

NPT Female × NPT Female
Pipe Size	Flow Coefficient (Cv)	Max.0 Pressure	Min. Opening Pressure, psi	Temperature Range, °F	End—End Lg.0
1/4	1.01	3,000 psi @ 70° F	1	35° – 300°	2 5/8″
3/8	3.09	3,000 psi @ 70° F	1	35° – 300°	2 5/8″
1/2	4.03	3,000 psi @ 70° F	1	35° – 300°	2 5/8″
3/4	9	3,000 psi @ 70° F	1	35° – 300°	3 5/16″
1	11.09	3,000 psi @ 70° F	1	35° – 300°	3 11/16″
NPT Male × NPT Male
1/4	1.01	3,000 psi @ 70° F	1	35° – 300°	3 13/16″
3/8	3.09	3,000 psi @ 70° F	1	35° – 300°	3 13/16″
1/2	4.03	3,000 psi @ 70° F	1	35° – 300°	3 13/16″
3/4	9	3,000 psi @ 70° F	1	35° – 300°	3 13/16″

Enquiry

If you have any query related to this product please contact us at +912222821251 or reach to us through email at info@avlok.com. Our experts would guide you the same and inform regarding other various metals suitable for your applications.
